EC Series 1 Gang Zigbee Curtain Switch Module with RF Receiver

This is economic version of 1 gang Zigbee RF Smart Curtain Switch Module. Most normal switches on the market are compatible with it. By using this high tech smart curtain module, all kinds of curtain, roller shutter, blind can be remote controlled by mobile phone APP, RF remote or Alexa/Google Home/Yandex.

Different Types Of EC Series 1 Gang Zigbee Curtain Switch Module with RF Receiver

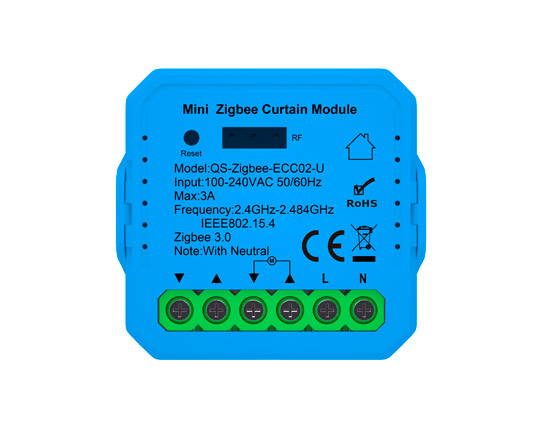

QS-Zigbee-ECC02

  • 1 Gang Zigbee Curtain Module with RF

  • Input Voltage 100-240V AC

  • Max Load 3A

  • Dims (WxDxH) 40x40x18 mm

Products

Parameters Of EC Series 1 Gang Zigbee Curtain Switch Module with RF Receiver


Protocol

Zigbee 3.0 + RF

Operation frequency

2.4GHz - 2.4835GHz WIFI

Operation temp.

-10ºC - +40ºC

Case temp. Tc

+80ºC (Max.)

Operation range

≤ 200 m

IP rating

IP20

Certificates

CE ROHS

Warranty

2 years


Features Of EC Series 1 Gang Zigbee Curtain Switch Module with RF Receiver

Zigbee and RF wireless control curtain module
Compatible with most Zigbee 3.0 gateway.
Suitable for normal switches and push button switch
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home devices,easily achieve home automation.
Accept customer customization for logo, color box. etc.

Quality Standard Of EC Series 1 Gang Zigbee Curtain Switch Module with RF Receiver

EMC Standard (EMC)

ETSI EN 300 328 V2.2.2 (2019-07)

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.4 (2020-09)

EN IEC 62311:2020

EN 62479:2010

EN IEC 55015:2019+A11:2020

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 61547:2009

Safety Standard (LVD)

IEC 60669-2-1:2002/AMD1:2008/AMD2:2015,

IEC 60669-1:1998/AMD1:1999/AMD2:2006,

EN 60669-2-1:2004+A1: 2009+A2:2010,

EN 60669-1:2018

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863
