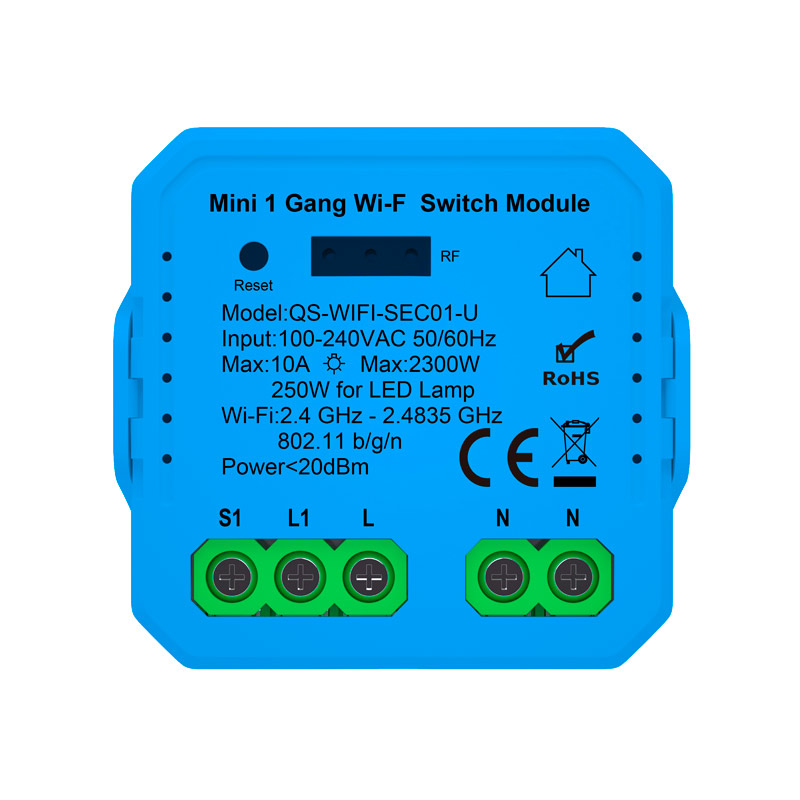

This economic series 1 gang smart switch module is with switch on/off function for lighting or household electronic appliances, such as coffee machine, refrigerators, water heaters, televisions, air conditioners, electric fans etc. This smart switch module can be WiFi or RF wireless controlled. The linked devices can also be voice controlled by Alexa, google home and Yandex.
Protocol | WiFi + RF |
WiFi | WiFi 802.11 b/g/n |
Operation frequency | 2.4GHz - 2.4835GHz WIFI |
Operation temp. | -10ºC - +40ºC |
Case temp. Tc | +80ºC (Max.) |
Operation range | ≤ 200 m |
IP rating | IP20 |
Certificates | CE ROHS |
Warranty | 2 years |
ETSI EN 300 328 V2.2.2 (2019-07)
ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489-17 V3.2.4 (2020-09)
EN IEC 62311:2020
EN 62479:2010
EN IEC 55015:2019+A11:2020
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
EN 61547:2009
IEC 60669-2-1:2002/AMD1: 2008/AMD2:2015,
IEC 60669-1:1998/AMD1: 1999/AMD2:2006,
EN 60669-2-1:2004+A1: 2009+A2:2010,
EN 60669-1: 2018
Radio Equipment Directive (2014/53/EU)
2011/65/EU, (EU) 2015/863
Manual of WIFI PUSH Button and Normal Switch Module QS-WIFI-SEC01 A5 20221130
